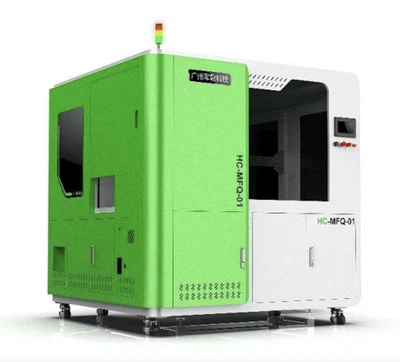

HC FREING ntiv nplhaib Tsis Siv Neeg Txiav Thiab Gluing Tshuab
Nws tuaj yeem txuas 15 daim tib lub sijhawm, thiab cov zis txhua hnub tuaj yeem ncav cuag 30,000 daim ib hnub. Ib lub tshuab txuag 6-8 manepower. Nws yog cov servo-automatic. Ib tug neeg tuaj yeem ua haujlwm 2-5 cov tshuab tib lub sijhawm. Lub interface zoo nkauj thiab du yam tsis muaj kua nplaum me me thiab ruaj khov zoo. Nws yog qhov tsim nyog rau kev txiav thiab cov txheej txheem pasting ntawm silicone thiab roj hmab o-rings, txuag sijhawm, ua haujlwm thiab nyiaj txiag. Nws yog qhov kev xaiv rau cov chaw tsim khoom lag luam los tsim cov ntsaws ruaj ruaj. Yog tias koj txaus siab, thov hu rau Tus Thawj Tswj Kev Lag Luam Joanna Wu Whatsapp:86 13533554735
| Khoom npe | HC FREING ntiv nplhaib Tsis Siv Neeg Txiav Thiab Gluing Tshuab |
| Cov Khoom Lag Luam | Ntev: 230-1000 MM / 230--1500mm / 230-2000mm |
| Fai fab hov ntau | 220V |
| Cua Siab | 0.6 MPa |
| Hwjchim | 5kw |
| Qho hnyav | 1200 kg |
| Khoom Siv Hlau Loj: (L × W × h) | 6500 × 1850 × 2000 mm |
| Tus naj npawb ntawm cov cuab yeej ua haujlwm | Pwm pub (phau ntawv lim kev cob qhia) ntau dua lossis sib npaug rau 1 |
| Ib tus lej ntau lawm | Ntau dua los yog sib npaug rau 15 |
| Ua tau zoo | 8-15s lub voj voog (3000-4000 / teev) |
| Tsim nyog Cov Khoom Siv | Foob ntiv nplhaib, silicone, ua npuas ncauj series ntawm puag ncig, oval square, duab plaub, thiab lwm yam (sib txawv (sib txawv) rau kev sib txawv |
Ntau lawm kab pem hauv ntej pom
Ntau Lawm Kab Cho Top Saib
Ntau Lawm Kab Obecique Saib
Taw qhia ntawm Khib

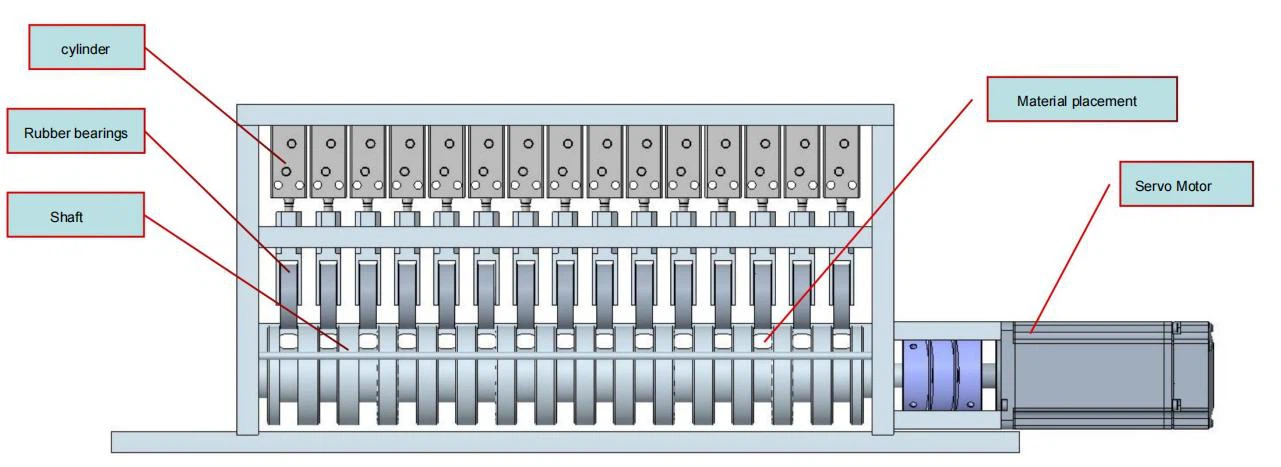

Taw qhia ntawm 15 lub tshuab noj mov
Nkaus Flow:
Cov khoom dhau los ntawm cov ntaub ntawv muab tso rau ntawm txoj haujlwm, servo lub tog raj kheej tsav cov ntaub qhwv, thiab cov khoom dhau los ntawm kev sib txhuam ntawm cov khoom siv ntawm kev xa cov ntaub ntawv rau pem hauv ntej.
Taw qhia rau cov khoom siv Sensing Mechanism
Nkaus Flow Themilline Rub:
Cov khoom tsim khoom tom ntej, cov khoom siv tsav cov kev tsim lub log upwor, thiab lub cim kev txiav txim siab no, thiab PLC txiav txim siab tias muaj khoom.
Thaum tus re tsis muaj cov khoom txua tsim los tsav lub log induction, cov duab photoelectric sensorcanno yuav ua rau, PLC cov kws txiav txim cov khoom tsis txaus.

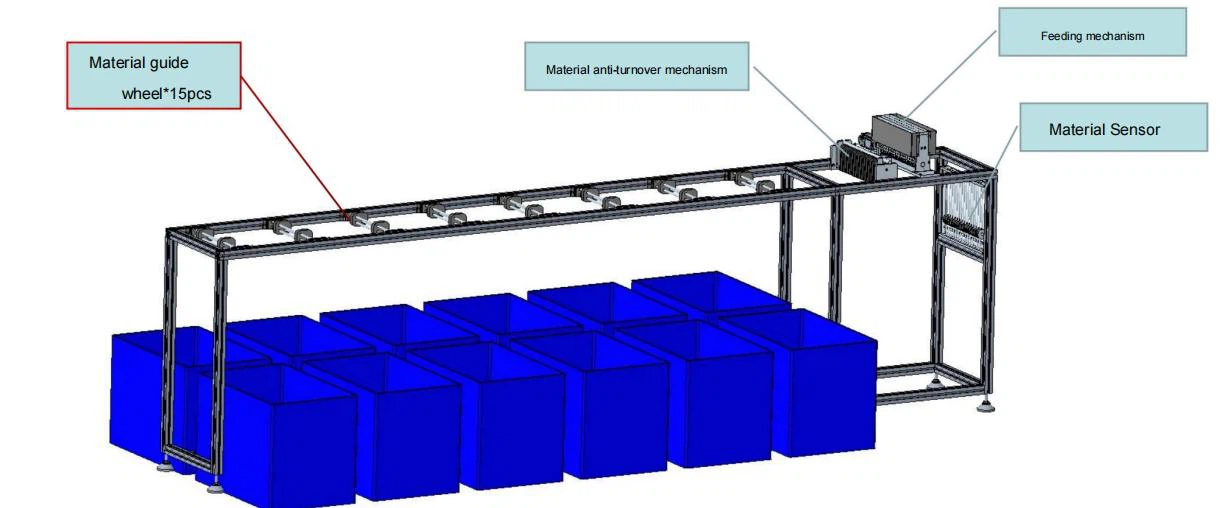

Taw qhia rau Khib Ua Haujlwm
Nkaus Flow:
1.Cov neeg teb xov tooj txhim tsa lub nplhaib cov khoom ntawm tus ncej thiab kho nws.
2. Tus neeg teb xov tooj rub cov khoom siv los ntawm cov lus qhia cov kabmob, tiv thaiv kev siv tshuab, lub cev muaj zog sensor, thiab mus txog ntawm lub tshuab ua ke. Txoj haujlwm tiav.
Tej thiab lub tshuab ci

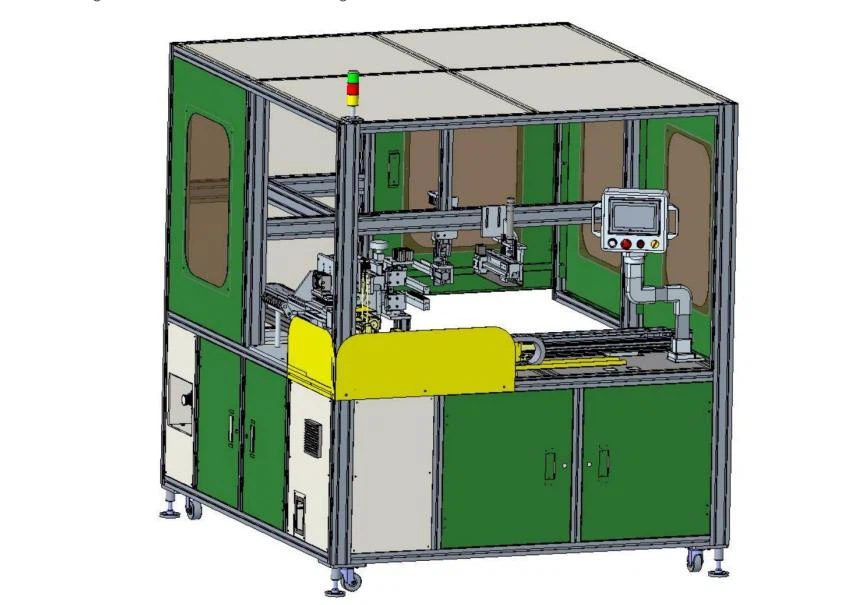

Tshuab qauv
Kev ua haujlwm ntawm kev txiav thiab gluing tshuab
Taw qhia rau cov txheej txheem txiav txim:
1. Lub taub hau clamping mechanism cov me nyuam clams cov khoom siv thiab rub tawm cov khoom lag luam ntev los ntawm cov ntsia hlau tsav.
2. Lub nraub qaum clamping tshuab clamps cov khoom siv thiab rub tawm cov khoom rau lub chaw txiav los ntawm ntsia hlau tsav.
3. Tus cutter mechanism txiav cov khoom.
4. Lub taub hau clamping mechanism sib pauv ib qho txiav saum npoo ntawm cov khoom rau cov khoom ua ntej kua zaub rau cov khoom xa tawm.
5. Lub nraub qaum clamping mechanism kis dua lwm qhov kev txiav cov khoom rau cov khoom rau lub nraub qaum kua nplaum dispering tshuab rau cov kua nplaum.
6. Lub taub hau clamping mechanism ib txhij tig lug hloov 180 degrees thiab muab cov khoom ntawm docking tshuab rau cua sov thiab docking.
7
8. Ib lub voj voog ua tiav.
Cov cuab yeej ua haujlwm chaw nres tsheb
Chaw Nres Tsheb 1:
Sab xub ntiag ntawm Dispensing Mechanism
Action ntws qhia:
Ab kua nplaum yog squeezezed tawm ntawm cov kua nplaum tawm ntawm cov kua nplaum ntawm lub tub kua nplaum. KHEEJ KHEEJ 2 THIAB LUB KHEEJ HLAU 3 / Lub Tog Raj Kheej 4 Txav Sab Sab Thiab Txoj Cai Kom Tusyees Scrape Ab nplaum on Cov Yeeb Nkaws Ntawm Cov Yeeb Nkab Ntawm Cov Yeeb Nkaws Ntawm Cov Yeeb Nkab Toj.
Chaw Nres Tsheb 2:
Kev txiav tshuab
Nkaus Flow:
Cov nias lub tog raj kheej presses cov khoom tsim khoom, thiab txiav cov khoom loj thiab qis dua cov thooj voos kheej ua ke los txiav cov khoom siv.
Chaw Nres Tsheb 3:
Lub Tsev Tsheb Clamping Txheej Txheem
Nkaus Flow:
Cov nias lub tog raj kheej presses cov khoom tsim khoom, thiab sab saud thiab qis dua cov thooj voos kheej ua ke los txiav cov khoom siv.
Chaw Nres Tsheb 4:

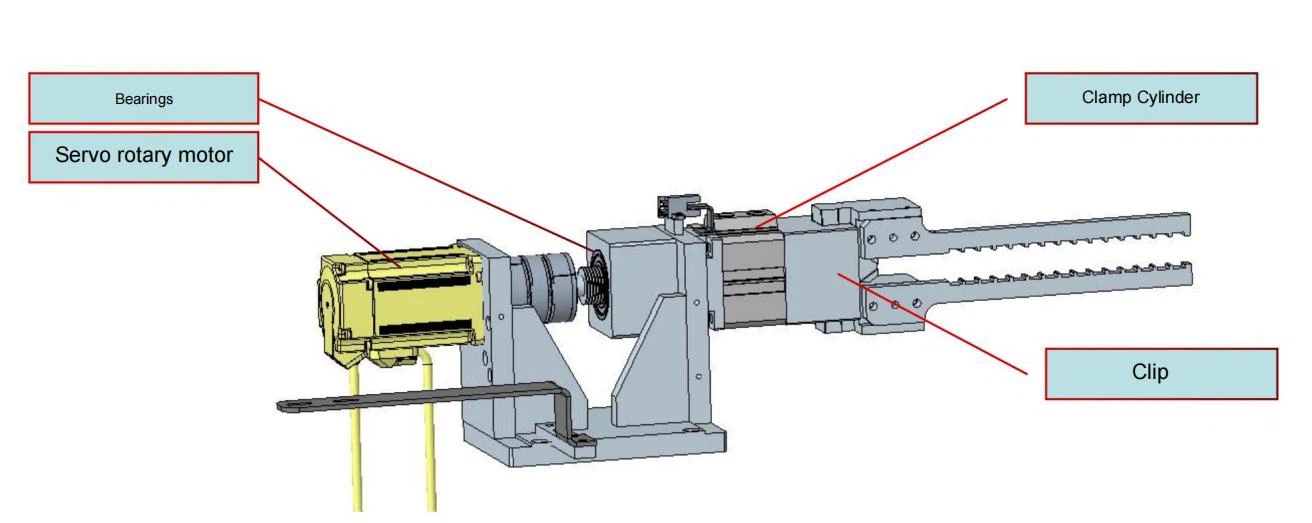

Hauv ntej ntawm Clamping Mechanism
Nkaus Flow:
Lub tog raj kheej 1 thawb lub tshuab xa mus rau clamp cov ntaub ntawv. Lub tog raj kheej 2 tswj lub qhib / kaw ntawm clamp rau clamp cov khoom. Tus servo teb lub cev muaj zog tswj lub clamp kom tig 180 degrees rau kev ua.
Chaw Nres Tsheb 5:
Cov khoom siv tshuab
Nkaus Flow:
Lub tog raj kheej 1 Pushes cov khoom xaiv mechanism rau pem hauv ntej mus rau txoj haujlwm tshwj xeeb.
Lub tog raj kheej 3 tswj cov khoom xaiv clamp rau flip 90 degrees khaws cov khoom.
Lub tog raj kheej 4 tswj tau qhib / kaw ntawm cov khoom xaiv clamp rau clamp cov khoom los ntawm kaw nws.
Tom qab khaws cov khoom siv, lub tog raj kheej 3 nqa cov khoom siv rau kev siv hluav taws xob.
Chaw nres tsheb 6:
Cov tuam txhab docking
Nkaus Flow:
Pem hauv ntej clamping mechanism thiab cov tom qab clamping tshuabhia muab cov khoom ntawm cov khoom lag luam hauv qab.
Lub tog raj kheej 1 thiab lub tog raj kheej 2 ua nyob rau tib lub sijhawm los nias cov khoom rau cua sov.
Teeb lub caij sov. Thaum lub sijhawm nce, docking ua tiav.
Chaw nres tsheb 7:
Cov txheej txheem tom qab dispensing
Action ntws qhia:
Txiav tawm ntawm cov kua nplaum tawm ntawm cov kua nplaum tawm ntawm cov kua nplaum ntawm lub tshuab raj ntawm lub tog raj kheej 2 / lub tog raj kheej 2 / lub tog raj kheej 4 / sab laug sab laug thiab sab laug txhuam cov kua nplaum uas yog qhov zawj on kua nplaum.
