Tsheb Cua Txias Lim Lim Muab Plaub-Sab Ntau Lawm Kab
Specification
- 1. Yam khoom: ntev: 150-400mm; dav: 150-350mm
- 2. Scraping dav: 12-50mm
- 3. Voltage: 220V / 380V; cua siab: 0.6 Mpa; hwj chim: 30KW; Luj: 1200KG
- 4. Lub sijhawm ua haujlwm ntawm ib pawg khoom siv: Tsawg dua lossis sib npaug li 7S
- 5. Cov khoom siv hneev taw loj: (L * W * H): 19000x3000x2000mm
- 6. Tus naj npawb ntawm cov neeg siv khoom siv: pwm pub (cov ntawv lim dej tawm) Ntau dua lossis sib npaug rau 1
- 7. Tus naj npawb ntawm cov pwm ncig: ntau dua lossis sib npaug rau 18
- 8. Lub sijhawm hloov khoom siv yuav tsum yog 0.5 teev
Decive Reference Saib

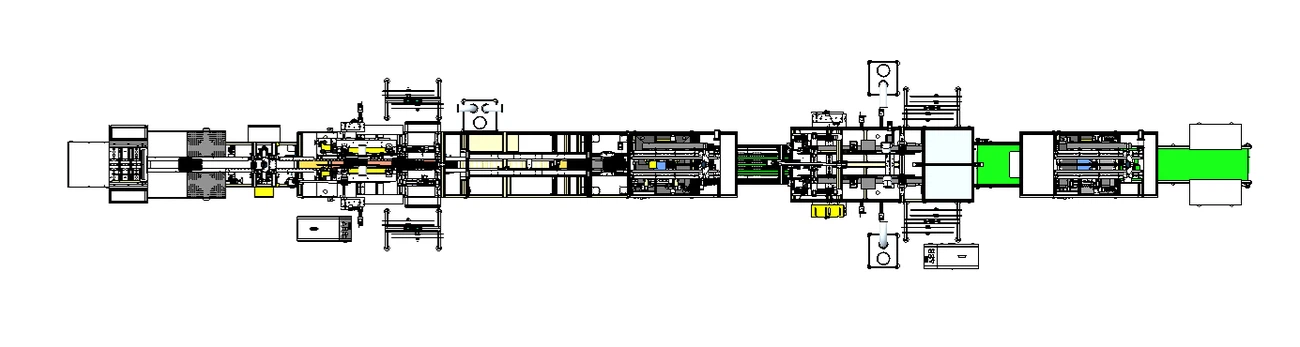

Production Line Front View
Ntau lawm Kab Sab saum toj Saib
Cov khoom siv kev taw qhia txog: Ntev sab
Taw qhia ntawm Txhua Lub Koom Haum
Txheej txheem Flow:
1. Tus neeg teb xov tooj thauj khoom mus rau lub pwm shaping ib los ntawm ib qho.
2. Muab lim rau hauv kab conveyor, tsis siv neeg kho thiab ntug txuas.
3. Automated trimming tom qab ntug txuas.
4. Cov khoom sib cais nkag mus tsis siv neeg demolding mechanism.
5. Pwm rov qab mus ua haujlwm platform ntawm of the elevator convey.
6. Automated precision trimming tom qab demolding.
7. Npaj rau kev sau ntawm cov kab conveyor.
Cov Khoom Siv Loj Cov Lus Qhia
Cov cuab yeej muaj yim qhov chaw, uas tuaj yeem tshem tau, txhua qhov tsis pub dhau 2.5 meters ntev.
Cov cuab yeej siv kev taw qhia: sab luv
Taw qhia ntawm Txhua Lub Koom Haum
Txheej txheem Flow:
1. Cov khoom muab tso rau ntawm txoj siv conveyor pub.
2. Sensing priduct -- ntug scraping -- ntug banding.
3. Cov txheej txheem ntxig ntxig ntxig rau hauv cov khoom thiab txav mus rau qhov sib txawv ntawm cov welt, kom cov nplooj ntawv pem hauv ntej thiab nraub qaum ntawm cov khoom tau ruaj khov rau ntawm ntug sawb.
4. Lub coarse trimming cais mechanism yuav txiav cov khoom ib los ntawm ib tug thiab cais lawv.
5. Lub precision mechanism ua zoo txiav ntawm cov khoom.
6. Cov khoom tiav tawm ntawm cov khoom siv conveyor siv.
Khoom Taw Qhia Chaw Nres Tsheb
Kev siv Loj
Zuag qhia tag nrho Dimensions ntawm cov cuab yeej
